Bluesun Solar Shingles Solar Roof Tiles Photovoltaic 500w Shingled Solar Panel 500watt for Household

Name: Bluesun Solar Shingles Solar Roof Tiles Photovoltaic 500w Shingled Solar Panel 500watt for Household
Brand: BLUESUN
Price: 1 USD

Quality Bluesun Solar Shingles Solar Roof Tiles Photovoltaic 500w Shingled Solar Panel 500watt for Household for sale

Brand Name : BLUESUN

Model Number : BSM500PM5-72SB

Place of Origin : Anhui, China

Cell size : 166mmx166mm

Panel Dimensions : 2056*1140*35m

Panel Efficiency : 21.3%

Open Circuit Voltage(V) : 46.8

Short Circuit Current(A) : 13.4

Weight : 25KG

Dimensions(MM) : 2056*1140*35m

Color : Black

Connector Type : PV Connector

Cable type : 2.5mm solar cable 450 (+10/-0) mm

Packing : 31pcs/box;682pcs/40'container

Load Power (W) : 500w

Power Output Warranty : 25years

Contact Now

Products Description

Bluesun Solar Shingles Solar Roof Tiles Photovoltaic 500w Shingled Solar Panel 500watt for Household

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Product Paramenters

Electrical Characteristics
Model	BSM470PM5 -72SB	BSM475PM5 -72SB	BSM480PM5 -72SB	BSM485PM5 -72SB	BSM490PM5 -72SB	BSM500PM5 -72SB
Max Power(Pmax) [W]	470	475	480	485	490	500
Open Circuit Voltage(Voc) [V]	46.4	46.5	46.6	46.6	46.7	46.8
Short Circuit Current(lsc) [A]	13.04	13.10	13.16	13.22	13.28	13.40
Max Power Voltage(Vmp) [V]	38.6	38.7	38.8	38.8	38.9	39.0
Max Power Current(lmp) [A]	12.18	12.27	12.37	12.50	12.60	12.82
Module Efficiency [%]	20.1	20.3	20.5	20.7	20.9	21.3
Power Tolerance	0-5W
Max System Voltage	1000V/1500V/DC(IEC)
Max Series Fuse Rating	20A
Operating Temperature	-40 °C to + 85°C
STC	Irradiance 1000W/m2, cell temperature 25 °C , AM1.5

Advantages Of Shingled Module

Advantages

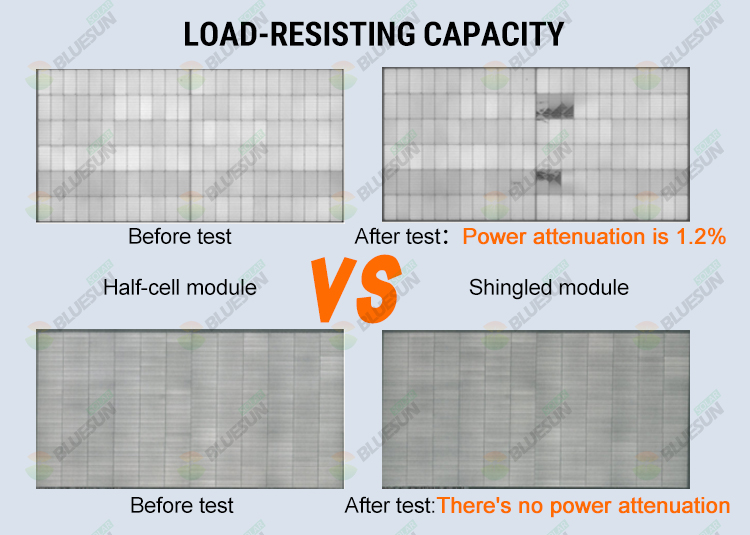

*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).

*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.

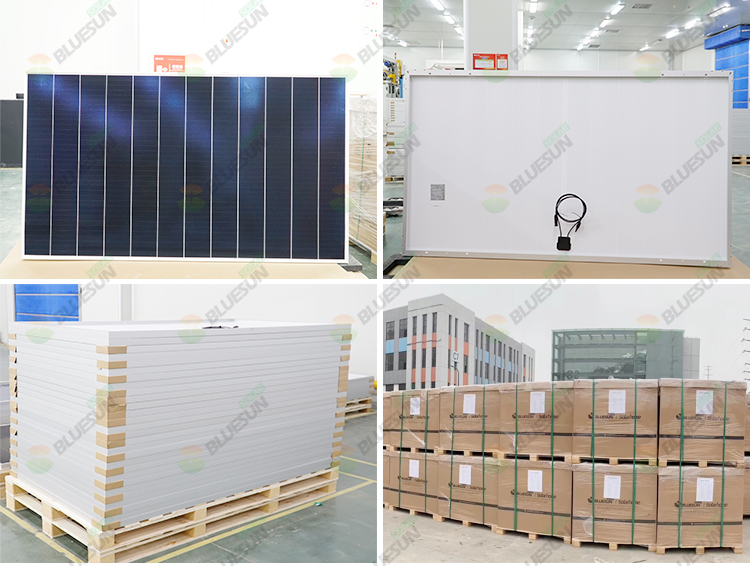

Packing & Delivery

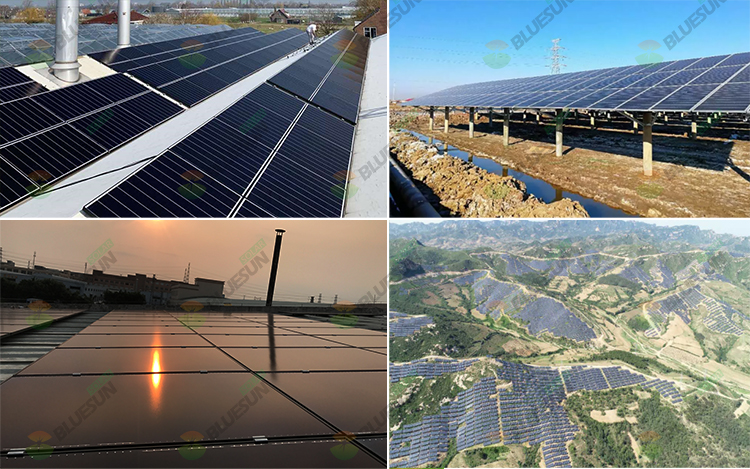

Projects

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount
