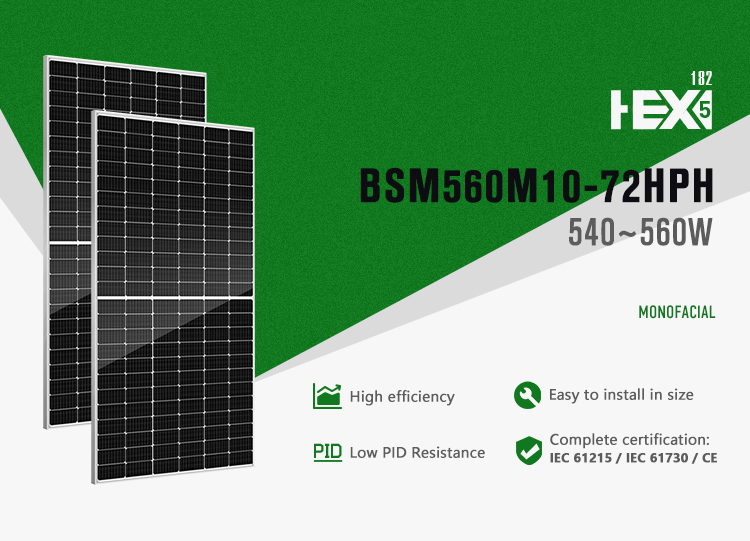

Bluesun Easy Installed Solar Power Panel Solar Pv Module 540w 550w 560w Home Use Solar Panels Wholesale House

品牌 : Bluesun

型号 : BSM560M10-72HPH

原产地 : Anhui, China

电池片尺寸 : 182mmx182mm

类型 : 打击乐, 半电池

尺寸 : 2278*1134 * 35mm

组件效率 : 21.68%

底片 : 2.0mm热强化玻璃

玻璃 : 3.2mm高透射钢化玻璃

产品名称 : 光伏太阳能电池板

连接器 : 兼容连接器

关键词 : 500瓦太阳能电池板

接线盒 : IP68额定

应用程序 : 商业

电缆 : 4mm2

框架颜色 : 银黑色

最大系统电压 : 1000V/1500V DC

保修期 : 25年

Contact Now

Products Description

Bluesun Easy Installed Solar Power Panel Solar Pv Module 540w 550w 560w Home Use Solar Panels Wholesale House

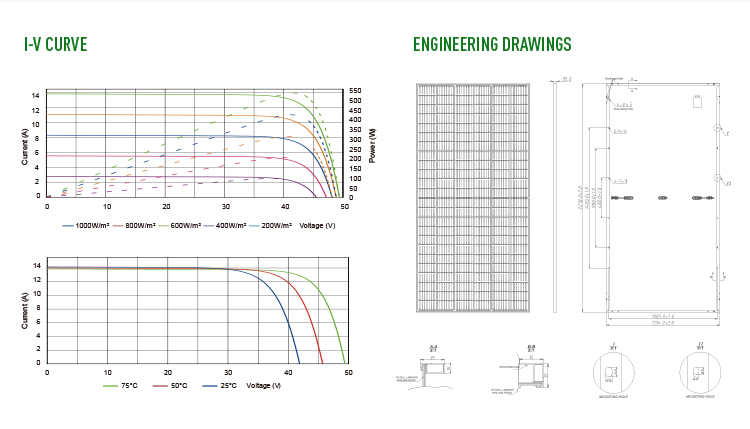

Product Paramenters

SPECIFICATIONS
Module Type	BSM540M10-72HPH	BSM545M10-72HPH	BSM550M10-72HPH	BSM555M10-72HPH	BSM560M10-72HPH
Module Type		STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	540	545	550	555	560
Operating Voltage(Vmp/V)	41.96	42.06	42.16	42.24	42.33
Operating Current(Imp/A)	12.87	12.96	13.05	13.14	13.23
Open-Circuit Voltage(Voc/V)	49.60	49.70	49.80	49.90	50.00
Short-Circuit Current(Isc/A)	13.74	13.84	13.94	14.04	14.14
Module Efficiency（%）	20.90	21.10	21.30	21.49	21.68
STC: Irradiance 1000W/m², Cell Temperature 25°C Air Mass AM1.5
More details please send inquiry to us

Certificate

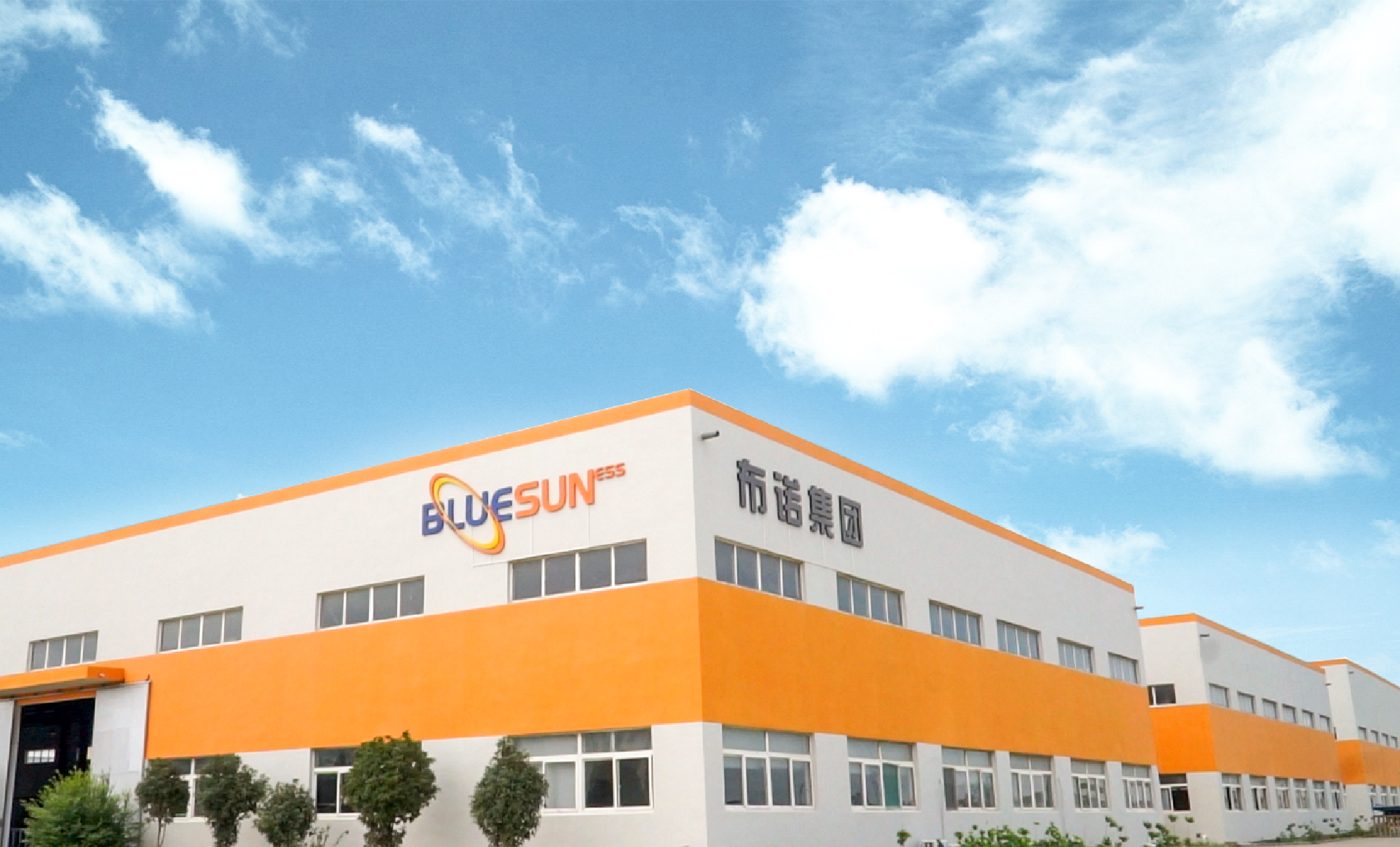

Bluesun Company

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS.

Our Global Exhibition

INTERSOLAR EUROPE

INTERSOLAR MEXICO

INTERSOLAR AMERICA

THE FUTURE ENERGY SHOW PHILIPPINES

SOLAR SOLUTIONS INT AMSTERDAM

SOLAR & STORAGE LIVE UK

Projects

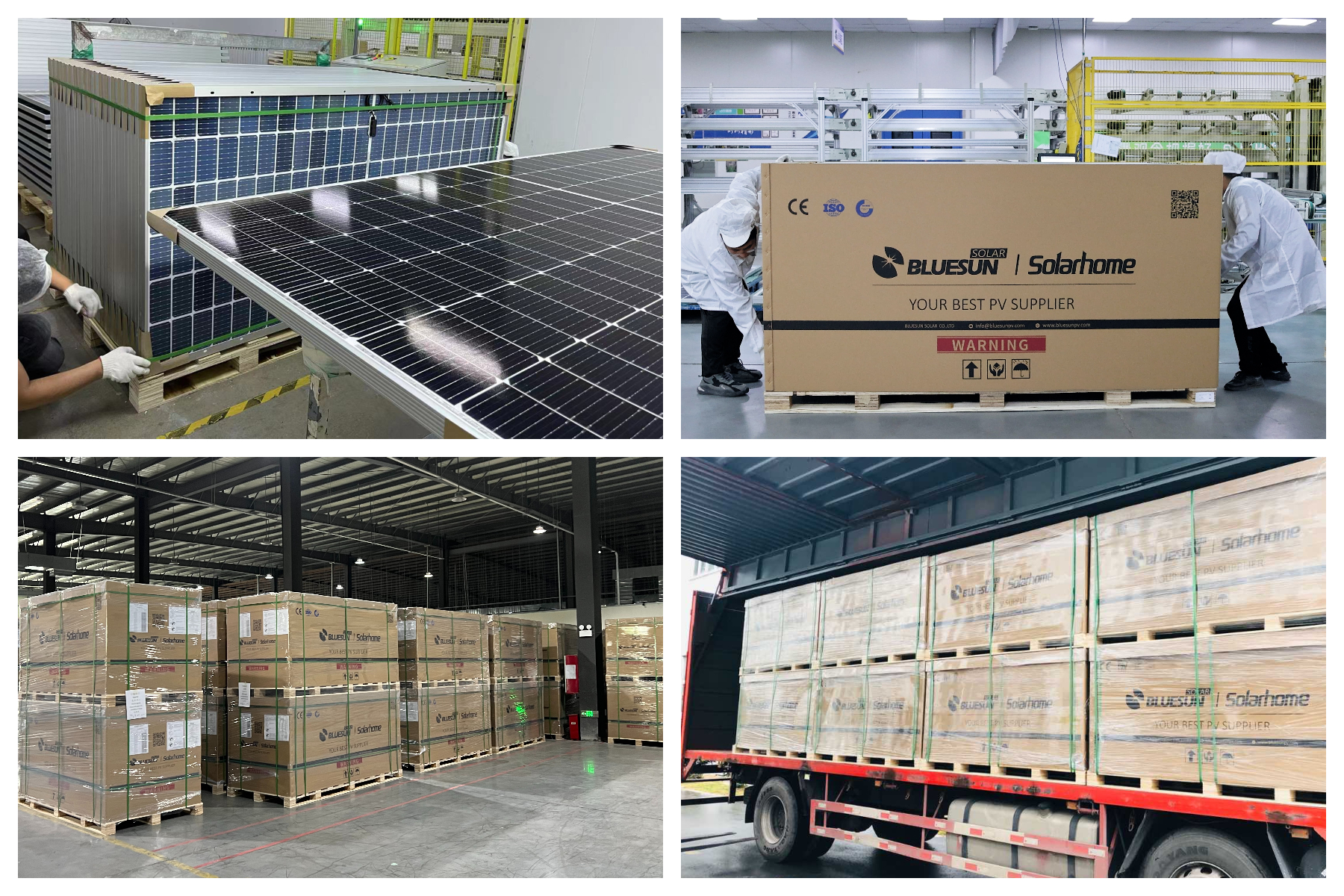

Packing & Delivery

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
