Bluesun Semi-Flexible 48V Solar Panel 250w Flexible 110w 160w 180w Panel for RV Use

品牌 : BLUESUN

型号 : BSM-SFLEX-110W

原产地 : Anhui

电池片尺寸 : 166mmx166mm

面板尺寸 : 1130*520*2mm

组件效率 : 21.4%

Product name : 110W Shingled Semi-Flexible Solar Panels

Maximum System Voltage : 100V

Module Weight : 2.5KG

Cable : 900mm / 2.5mm2

Warranty : 2 years Manufacturer Warranty, 10 years 80% of power output

Working Temperature : -40℃~+80℃

Module Structure : Aluminum Frame / Glass / EVA / Backsheet (Black/White)

Pallet Dimensions : 1130*520*2mm

Gross Weight per Pallet : 115KG

Certificate : CE

Contact Now

Products Description

Bluesun Semi-Flexible 48V Solar Panel 250w Flexible 110w 160w 180w Panel for RV Use

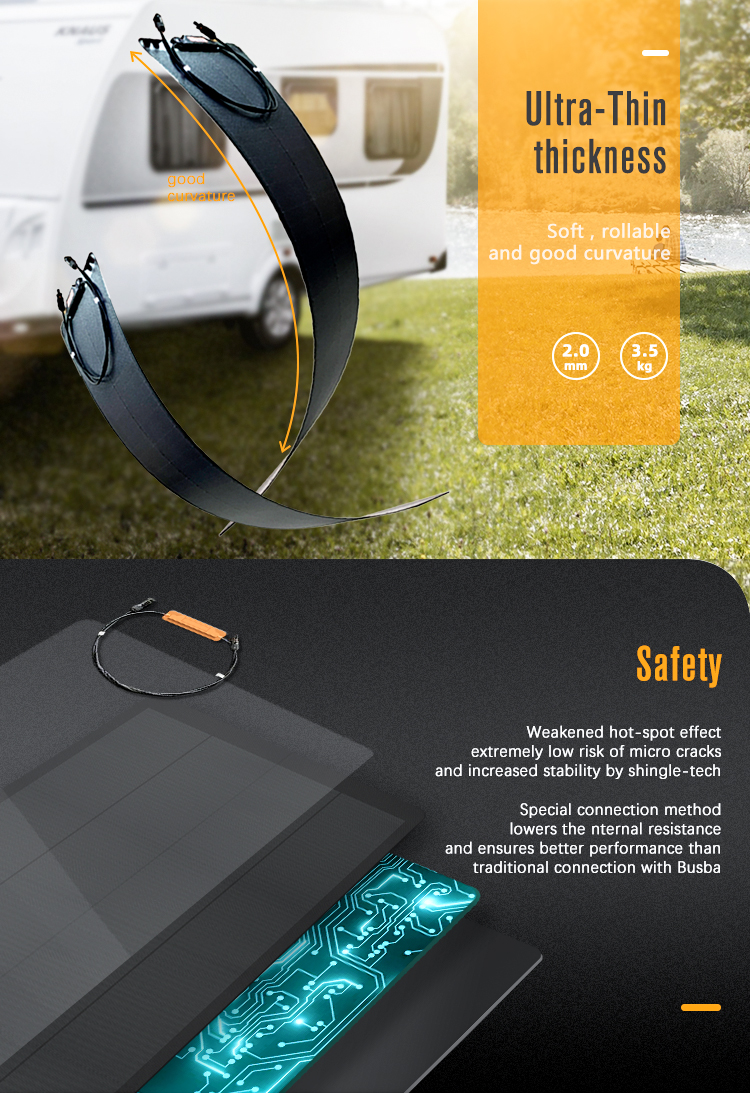

-Flexible Solar Panel as wafer thin, lightweight, and can mold to a curved surface

* Uses the highest efficiency mono-crystalline solar technology
* Ultra-light, waterproof, and corrosion resistant making them the perfect option for marine applications, RVs, camping and
emergency back-up charger
* Optional match charge controller required for safer battery charging

Technical Specification

Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃

Nominal Power

60W

110W

160W

Cell Type

Monocrystalline

Cell Efficiency

21.40%

Maximum Power Current (Impp)

3.30A

5.71A

7.27A

Maximum Power Voltage (Vmpp)

18.15V

19.25V

22V

Open-circuit Voltage (Voc)

21.45V

22.75V

26V

Short-circuit Current (Isc)

3.81A

6.22A

7.79A

Maximum System Voltage

100V

Output Tolerance

3.00%

Cable

900mm / 1.5mm2

900mm / 2.5mm2

Connector Type

PV Compatible

Module Structure

ETFE / EVA / Backsheet

Junction box rating

≥IP67

Number of Diodes

One

Working Temperature

-40℃~+80℃

Semi-flexible Panels are weather, water and corrosion resistant making them a perfect option for marine applications, RVs, camping and emergency back-up. These panels can continuously recharge batteries with the power of the sun. Light enough and durable enough to mount permanently outdoors on a range of vehicles.

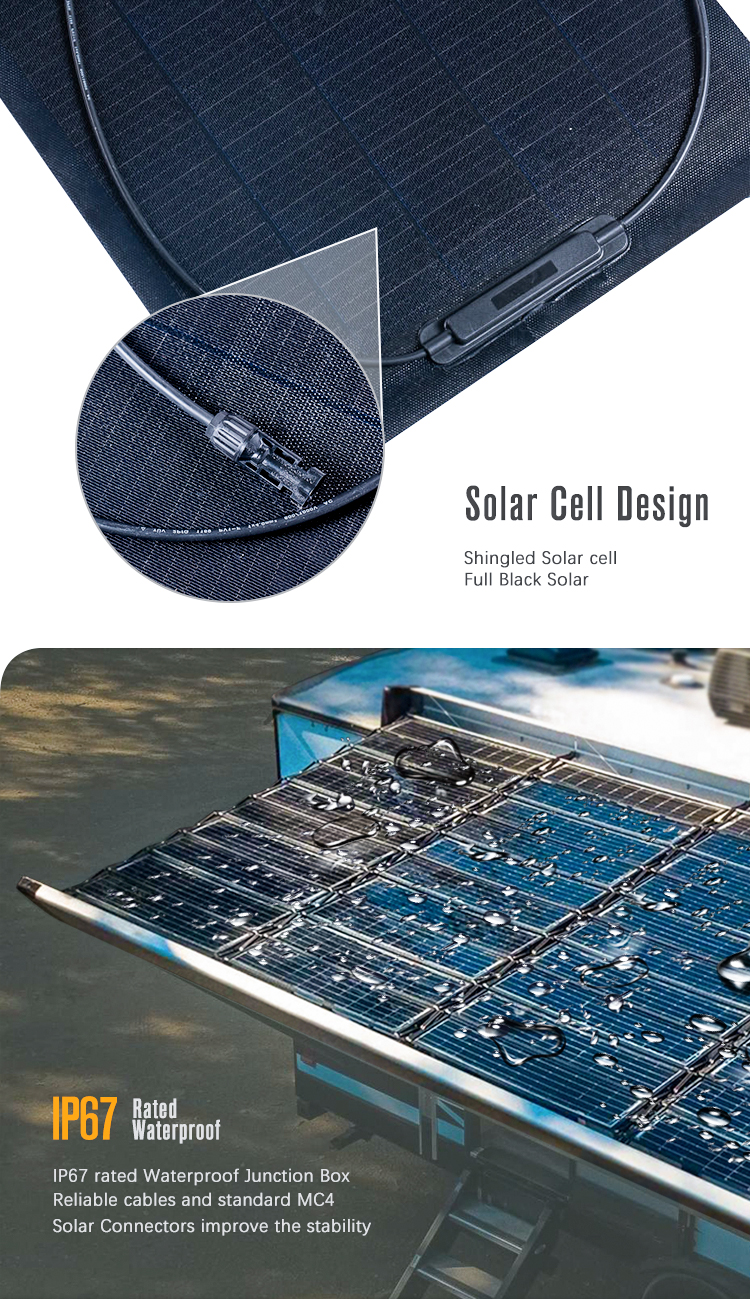

Feature Display

Application Scenario

* Camping trips, as power banks on your tent. They can also be safely rolled and stored when not in use. (These are also called camping solar panels.
* Long-distance travel in an RV. Of course, you could also carry a noisy generator for your power needs, or simply enjoy a serene drive with a flexible solar panel installed on your RV!
* For boating/fishing/yachting trips. Again, ditch the generator, and let the fish be lured by the serenity of your noise-free environment.
* Daily power backup. Do you find yourself constantly on the road, perhaps off the grid, panicking about your phone losing charge? Instead, you can slap on a flexible solar panel on top of your vehicle and allow it to serve as your sleek, eco-friendly power-bank.

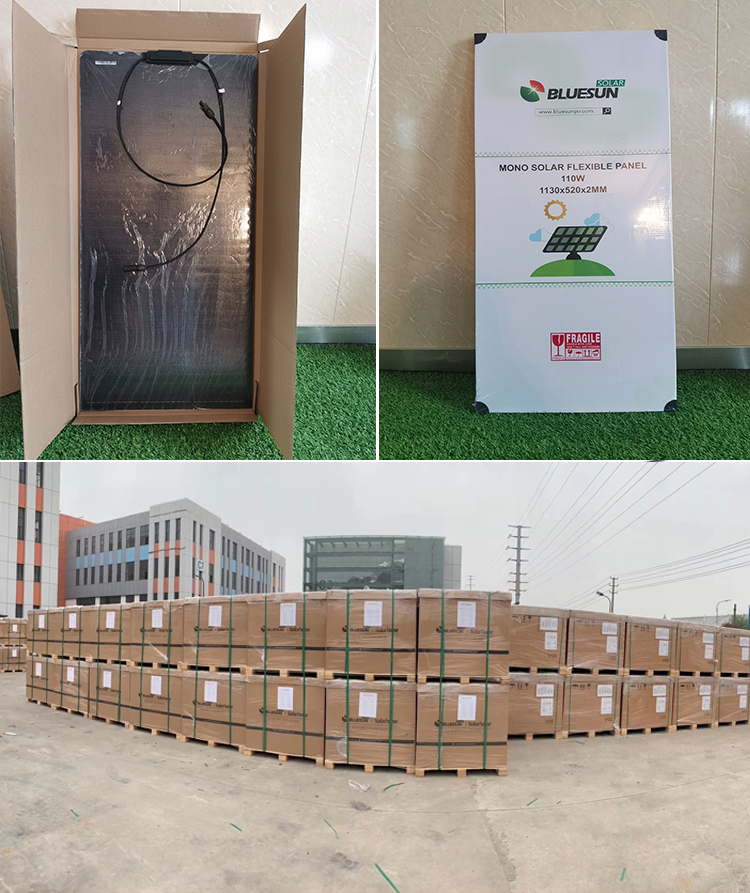

Packing & Delivery

*Exquisite Packaging is Suitable for E-Commerce Sales & Resale

Single Package

Packing specification 30/33/56 Pieces per Pallet

Packaging
Module Dimensions	8803502mm	11305202mm	12206802mm
Module Weight	1.3KG	2.5KG	3.5KG
Package	Single Package
Pieces per Pallet	56	33	30
Gross Weight per Pallet	12001100700mm	12001100700mm	12401100840mm

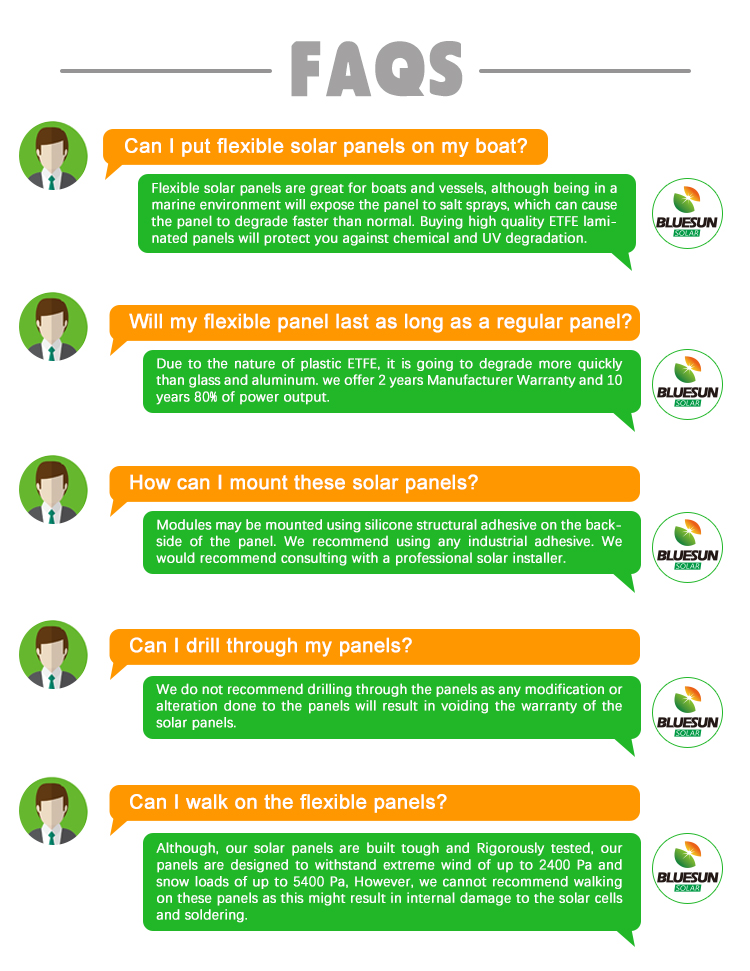

FAQS

Certifications

Bluesun Semi-Flexible 48V Solar Panel 250w Flexible 110w 160w 180w Panel for RV Use Images
