Bluesun Photovoltaic Panel Solar Mono 400W 410W 420W 425W Half Cell Solar Panel Black Frame Costo for Home Use

Product Categories

Bluesun Solar Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

品牌 : Bluesun

型号 : BSM425G12-54HPH

原产地 : Anhui, China

电池片尺寸 : 182mmx182mm

类型 : 半电池, PREC

尺寸 : 1722*1134 * 30mm, 1722*1134 * 30mm

组件效率 : 21.7%

太阳能电池 : 182 * 182mm, 单晶

重量 : 23.0kg

接线盒 : IP67

电缆 : 4mm2

前玻璃 : 高透射钢化玻璃

打包配置 : 36个/箱，936个/40'hq容器

连接器 : PV兼容

保修 : 25年

Contact Now

Products Description

Product Paramenters

SPECIFICATIONS
Module Type	BSM410G12-54HPH			BSM415G12-54HPH			BSM420G12-54HPH		BSM425G12-54HPH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	410	306	415	310	420	314	425	318
Operating Voltage (Vmpp/V)	31.43	29.3	31.64	29.6	31.83	29.8	32.03	30.0
Operating Current(Impp/A)	13.05	10.42	13.13	10.48	13.21	10.54	13.29	10.60
Open-Circuit Voltage (Voc/V)	37.50	35.30	37.75	35.50	38.00	35.70	38.25	35.90
Short-Circuit Current (Isc/A)	13.94	11.24	14.02	11.30	14.10	11.36	14.18	11.42
Module Efficiency qm(%)	21			21.3			21.5		21.7
STC: Irradiance 1000W/m . Cell Temperature 25℃, Air Mass AM1.5 NMOT: Irradiance at 800Wm . Ambient Temperature 2(TC. Air Mass AM1.5, Wind Speed 1m/s

Certificate

Projects

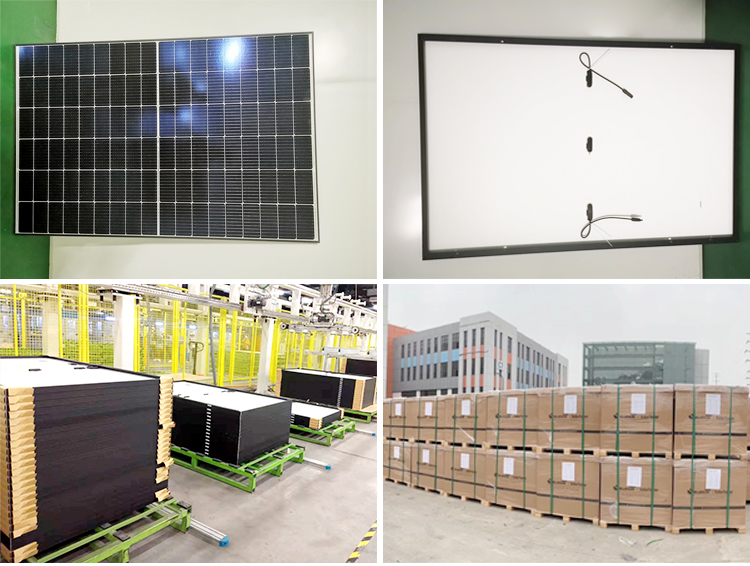

Packing & Delivery

Products Description

Product Paramenters

SPECIFICATIONS
Module Type	BSM410G12-54HPH			BSM415G12-54HPH			BSM420G12-54HPH		BSM425G12-54HPH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	410	306	415	310	420	314	425	318
Operating Voltage (Vmpp/V)	31.43	29.3	31.64	29.6	31.83	29.8	32.03	30.0
Operating Current(Impp/A)	13.05	10.42	13.13	10.48	13.21	10.54	13.29	10.60
Open-Circuit Voltage (Voc/V)	37.50	35.30	37.75	35.50	38.00	35.70	38.25	35.90
Short-Circuit Current (Isc/A)	13.94	11.24	14.02	11.30	14.10	11.36	14.18	11.42
Module Efficiency qm(%)	21			21.3			21.5		21.7
STC: Irradiance 1000W/m . Cell Temperature 25℃, Air Mass AM1.5 NMOT: Irradiance at 800Wm . Ambient Temperature 2(TC. Air Mass AM1.5, Wind Speed 1m/s

Certificate

Projects

Packing & Delivery

Bluesun Photovoltaic Panel Solar Mono 400W 410W 420W 425W Half Cell Solar Panel Black Frame Costo for Home Use Images
