Bluesun New MWT Solar Cells Solar Panel 350W 360W 370W 380W Power Home

品牌 : Bluesun

型号 : BSM380P-72M

原产地 : Anhui, China

电池片尺寸 : 156.75mmx156.75mm

类型 : 打击乐, 兆瓦

尺寸 : 1956*992*40mm

组件效率 : 22%

Type : Standard Solar Panel

Solar cell : Poly 156x156mm

Certificate : TUV/CE/ETL

Frame : Anodized Aluminium Alloy

Junction Box : IP65 Rated

Color : Blue And Black

Warranty : 25 Years Output Power Guarantee

OEM Order : Acceptable

Front Cover : 3.2mm High transmission, low Iron

保修期 : 25 YEARS

Contact Now

Product Description

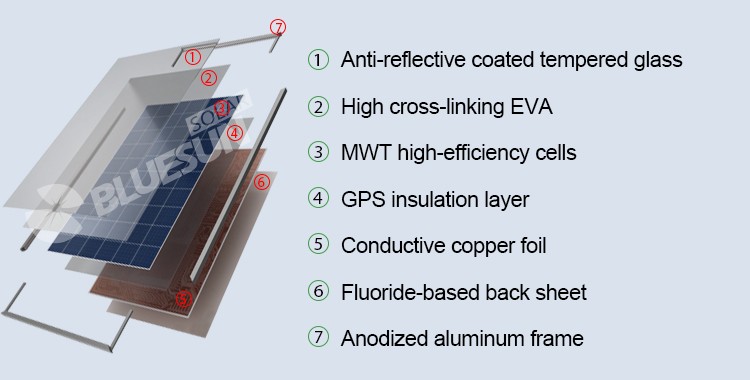

MWT Technology

MWT( Metal Wrap Though) is a newly developed back contact cell technology. It provides a new cell structure that eliminates electrodes on the front and maximizes the utilization of light and enhances reliability. MWT Back Contact cells converge the electrodes from the front to the rear side using conductive paste. This innovative design features with no bus-bar and no ribbon at the front.

Bluesun New MWT Solar Cells Solar Panel 350W 360W 370W 380W Power Home

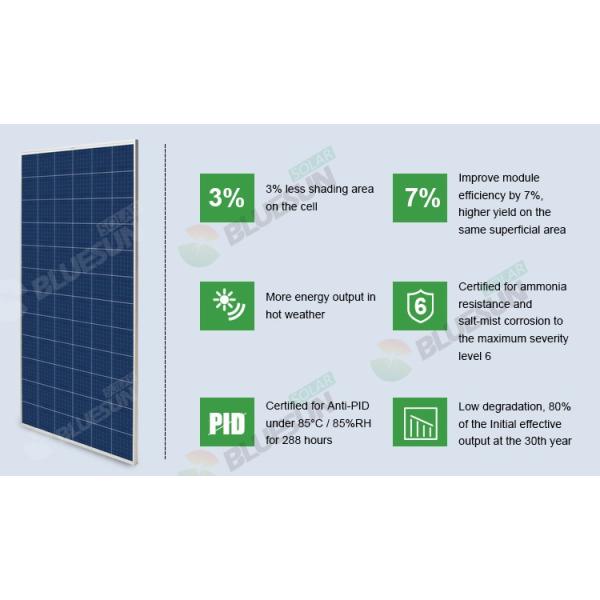

Technical Features

1.Improved Usage of Light

2.Improved Absorption of Electrodes

3.Better Response to Shading, Cracks and Breakage

Max power (Pm) (W)	350	355	360	365	370	375	380
Power Tolerance (%)	0~+3
Max-Power Voltage (Vm) (V)	37.5	37.7	37.9	38.1	38.3	38.5	38.7
Max-Power Current (Im) (A)	9.34	9.42	9.5	9.59	9.67	9.75	9.83
Open-Circuit Voltage(Voc) (V)	46.4	46.6	46.8	47.0	47.2	47.4	47.6
Short-Circuit Current(Voc) (A)	9.79	9.86	9.92	9.98	10.04	10.10	10.16
Module Efficiency (%)	18.1	18.3	18.6	18.8	19.1	19.3	19.6

Superior Warranty

We improved the initial degradation of the 1st year from -3.5% to -2% and reduce the annual degradation rate from -0.7%/year to -0.6%/year. Thereafter, we're proud to provide you a superior warranty.

Packing & Delivery

Model	60 Cells Package			72 Cells Package
Container Size	Quantity (pcs)	Quantity (pcs)	Quantity (pcs)	Quantity (pcs)
20GP	360	12	260	10
40GP	840	28	624	24
40HC	840	28	624	24

Project

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
