Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm

Product Categories

Bluesun Solar Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm

品牌 : Bluesun/OEM

型号 : BSM455M-HPH

原产地 : Anhui, China

电池片尺寸 : 166mmx166mm

类型 : 打击乐, 半电池, 标准太阳能电池板

尺寸 : 2094*1038 * 35mm

组件效率 : 20.9%

重量 : 25.5kg

产品名称 : 半电池太阳能电池板144电池单390w

太阳能电池板 : 单声道455瓦

保修 : 25年输出功率保证

应用程序 : 太阳能发电系统

接线盒 : IP68额定

证书 : TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

前玻璃 : 3.2mm高传输

TPT背板 : 白色或黑色

保修期 : 15年

Contact Now

Products Description

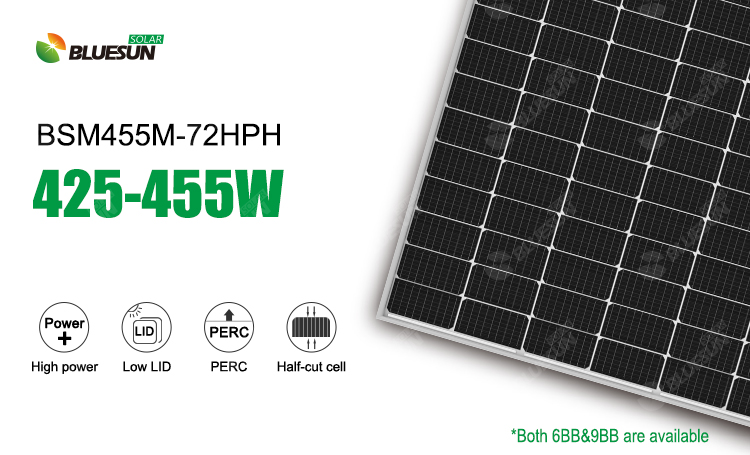

Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm

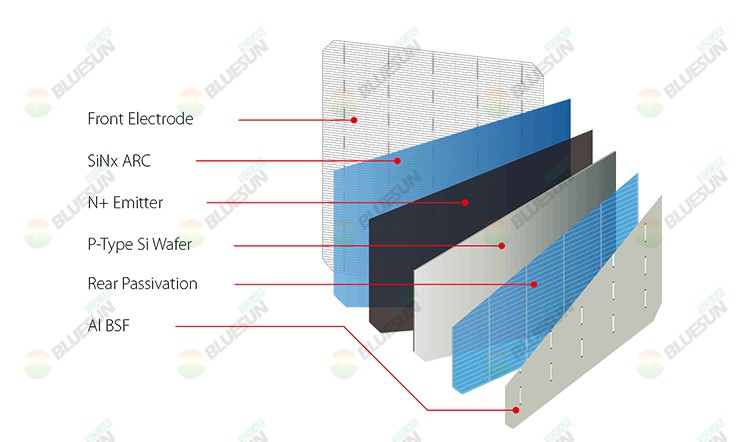

Perc Cell

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Electrical Characteristics
Model Number	BSM425M-72HPH	BSM430M-72HPH	BSM435M-72HPH	BSM440M-72HPH	BSM445M-72HPH	BSM450M-72HPH	BSM455M-72HPH
Testing Condition	STC
Maximum Power (Pmax/W)	425	430	435	440	445	450	455
Open Circuit Voltage (Voc/V)	48.3	48.5	48.7	48.9	49.1	49.3	49.5
Short Circuit Current (Isc/A)	11.23	11.31	11.39	11.46	11.53	11.60	11.66
Voltage at Maximum Power (Vmp/V)	40.5	40.7	40.9	41.1	41.3	41.5	41.7
Current at Maximum Power (Imp/A)	10.50	10.57	10.64	10.71	10.78	10.85	10.92
Module Efficiency(%)	19.6	19.8	20	20.2	20.5	20.7	20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5

Projects

Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.

Configuration：425W Solar Panel EU Stock

Installation site：Croatia

Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel

Installation site：U.K.

Configuration：440W Black Frame Shingled Solar Panel

Installation site：Sweden Gothenburg

Bluesun Company

Bluesun Solar, as one of the top solar integrated solution provider in China, is a high-tech manufacturer specializing in R&D of solar panels,lithium battery and ESS.

Our Global Exhibition

INTERSOLAR EUROPE

INTERSOLAR MEXICO

INTERSOLAR AMERICA

THE FUTURE ENERGY SHOW PHILIPPINES

SOLAR SOLUTIONS INT AMSTERDAM

SOLAR & STORAGE LIVE UK
