Bleusun 370w Solar Panel Half Cell 375w 380w 120cell Full Black Solar Panel Stock in US Long Beach Warehouse With UL

品牌 : Bluesun

型号 : BSM370M-60HPH

原产地 : Thailand

电池片尺寸 : 166 * 166mm

类型 : 打击乐, 半电池, 全黑色, PERC，半电池，双面

尺寸 : 1755*1038 * 35mm

组件效率 : 20.3%

模块 : 全黑Mono370w太阳能电池板

接线盒 : IP68

产品名称 : 半电池单太阳能电池板

重量 : 21kg

证书 : BSI/TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/TUV

保修 : 25年

电池效率 : 20.3%

框架 : 阳极氧化铝合金框架

应用程序 : 太阳能发电系统

保修期 : 25年

Contact Now

Who Buy From Bluesun

Bleusun 370w Solar Panel Half Cell 375w 380w 120cell Full Black Solar Panel Stock in US Long Beach Warehouse With UL

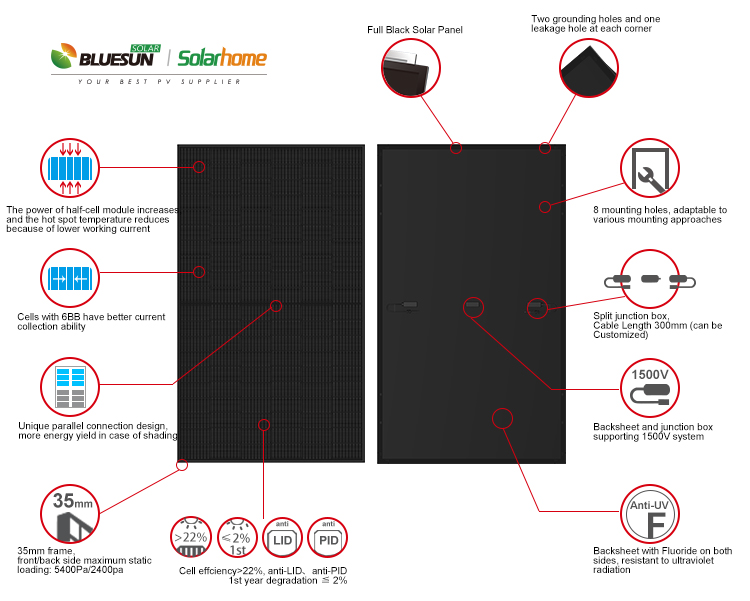

Products Description

Perc Cell

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Technical Specification

Electrical Characteristics AT STC
Model Number	BSM355M-60HPH	BSM360M-60HPH	BSM365M-60HPH	BSM370M-60HPH	BSM375M-60HPH	BSM380M-60HPH
Maximum Power (Pmax/W)	355	360	365	370	375	380
Open Circuit Voltage (Voc/V)	40.5	40.7	40.9	41.1	41.3	41.5
Short Circuit Current (Isc/A)	11.10	11.15	11.20	11.26	11.31	11.36
Voltage at Maximum Power (Vmp/V)	34.0	34.3	34.6	34.9	35.2	35.5
Current at Maximum Power (Imp/A)	10.45	10.50	10.56	10.61	10.66	10.71
Module Efficiency)%)	19.3	19.6	19.8	20.1	20.4	20.8
Power Tolerance	0-5W
Max System Voltage	DC 1500/1000(1 EC)
Max Series Fuse Rating	20A
Operating Temperature	-40 C to + 85 C
STC	Irradiance 1000W/m2, cell temperature 25C, AM 1.5

Packing & Delivery

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		Paypal	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
