Bluesun BSM375M-72HPH 375 370 Watts Half Cell Perc Mono Solar Panel with Black Frame USA Warehouse Stock

Product Categories

Bluesun Solar Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

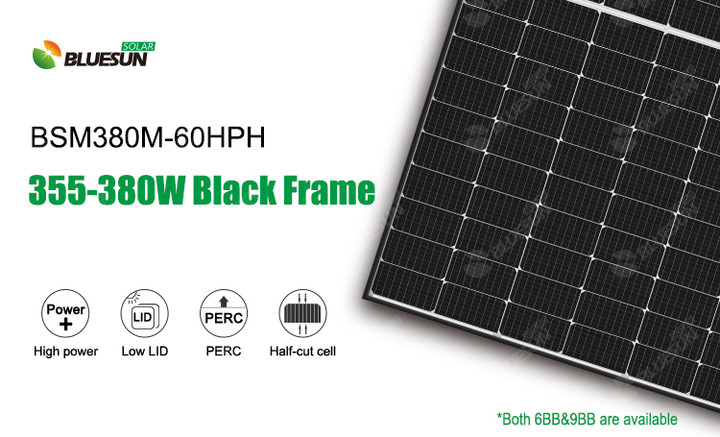

Bluesun BSM375M-72HPH 375 370 Watts Half Cell Perc Mono Solar Panel with Black Frame USA Warehouse Stock

品牌 : Bluesun

型号 : BSM370M-60HPH

原产地 : Anhui, China

电池片尺寸 : 166mmx166mm

类型 : 打击乐, 半电池, 全黑色, BIPV

尺寸 : 1755*1038*35

组件效率 : 20.1%

产品名称 : 单声道太阳能电池板

证书 : TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

应用程序 : 太阳能发电系统

背衬颜色 : 白色黑色透明

保修 : 25年输出功率保证

接线盒 : IP67额定

框架 : 阳极氧化铝合金

重量 : 19.5kg

OEM订单 : 可接受

保修期 : 10YEARS

Contact Now

Products Description

Bluesun BSM375M-72HPH 375 370 Watts Half Cell Perc Mono Solar Panel with Black Frame USA Warehouse Stock

Perc Cell

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Technical Specification

Model	BSM360M-60HPH	BSM365M-60HPH	BSM370M-60HPH	BSM375M-60HPH	BSM380M -60HPH
Max Power(Pmax) [W]	360	365	370	375	380
Open Circuit Voltage(Voc) [V]	40.7	40.9	41.1	41.3	41.5
Short Circuit Current(lsc) [A]	11.15	11.20	11.26	11.31	11.36
Max Power Voltage(Vmp) [V]	34.3	34.6	34.9	35.2	35.5
Max Power Current(lmp) [A]	10.50	10.56	10.61	10.66	10.71
Module Efficiency [%]	19.6	19.8	20.1	20.4	20.8
Power Tolerance	0-5W
Max System Voltage	DC 1500/1000(1 EC)
Max Series Fuse Rating	20A
Operating Temperature	-40 C to + 85 C
STC	Irradiance 1000W/m2, cell temperature 25C, AM 1.5

Packing & Delivery

Global Exhibition

Projects

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!

Certifications
